Les convertisseurs de médias Gigabit Perle S-1000MM, fibre vers fibre, offrent de nombreuses fonctionnalités et permettent d'étendre de façon transparente un lien multimode 1000Base-SX vers un autre lien 1000Base-SX multimode ou 1000Base-LX/EX/ZX/BX fibre monomode.

Les fonctionnalités avancées des systèmes Perle permettent de bénéficier d'une transparence totale du lien fibre. Ceci permet de résoudre plus efficacement les problèmes et de réduire la maintenance sur site. D'autre part, la garantie à vie et l'assistance technique disponible dans le monde entier, font des convertisseurs S-1000MM Gigabit fibre vers fibre de Perle un choix incontournable pour les professionnels.

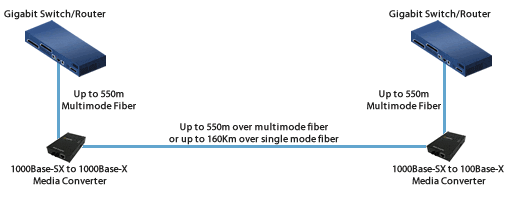

Qu'il s'agisse d'étendre des liens multimode vers d'autres liens multimode, ou des liens multimode vers des liens monomode, Perle dispose d'une gamme très complète de convertisseurs de médias Gigabit S-1000MM fibre vers fibre pour faire face à tous vos besoins de conversion des liens fibre.

Fonctions du S-1000MM Gigabit Fibre à Fibre: 1000Base-SX à 1000Base-X

Auto-Negotiation (802.3ab) Les interfaces fibre 1000Base-X assurent la négociation sur la base de la norme 802.3, alinéa 37.
Link Pass-Through Lorsque le commutateur Link Mode est placé en mode Smart Link Pass-Through, le lien 1000BASE-X sur l'un des ports reprend l'état de l'autre port de convertisseur de médias 1000Base-X. Cette fonctionnalité peut être utilisée que la négociation automatique soit activée ou non.
Fiber Fault Alert Lorsque la fonction Fiber Fault Alert est activée, l'état du récepteur 1000Base-X est passé au transmetteur 1000Base-X. Ceci permet de signaler les erreurs au périphérique partenaire connecté à l'interface 1000Base-X du convertisseur de médias. Si le transmetteur 1000Base-X s'arrête suite à une erreur, il est redémarré régulièrement pour permettre la résolution de l'erreur, à condition que le périphérique partenaire raccordé à l'interface 1000Base-X utilise une technique similaire. Cette fonction éradique donc les blocages qui se produisent sur certains convertisseurs de média. Applicable uniquement lorsque la fonction FAN (Fiber Auto-Negotiation) est désactivée.
Régénération des signaux La régénération des signaux préserve l'intégrité du signal et autorise un maximum de connexions fibre vers fibre sans dégradation du signal.
En cascade Les convertisseurs de médias peuvent être montés en cascade. Deux ou plusieurs convertisseurs peuvent être montés en chaîne sur un même lien pour en accroître la portée.
Pause (IEEE 802.3x) Le signal de pause est une fonction IEEE qui interrompt momentanément la transmission des données entre deux périphériques dès que l'un d'eux est surchargé. Le convertisseur de médias est transparent pour les trames de pause.
VLAN Transparent pour les paquets VLAN.
Duplex Opérations en semi-duplex et duplex intégral prises en charge.
Paquets géants Transparence pour les paquets de plus de 1 500 octets jusqu'à 10 Ko.
Remote Loopback Le convertisseur de médias peut procéder à un bouclage sur chaque interface fibre 1000Base-X.

Power

Input Supply Voltage

6 - 30 vDC, unregulated (12 vDC Nominal)

Current

0.21 amps

Power Consumption

2.5 watts

Power Connector

5.5mm x 9.5mm x 2.1mm barrel socket

Power Adapter

Universal AC/DC Adapter

100-240v AC, regulated DC adapter included

Indicators

Power / TST

This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink slowly when in Loopback test mode.

Fiber link 1 / Receive activity (LK1)

This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.

Fiber link 2 on / Receive activity (LK2)

This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.

Switches - accessible through a side opening in the chassis

Auto-Negotiation

  • Auto (default up) - Fiber Negotiation is performed for both fiber ports. Full and half duplex will be advertised. Pause will advertise support for Symmetrical and Asymmetrical Pause. Pause frame will not be acted upon or generated but will be passed through.
  • Off - Negotiation on both fiber ports will be disabled. Settings of Link mode and Fiber fault alert will be determined by those switch settings. Pause frames will not be acted upon or generated but will continue to be passed through.

Link Mode

  • Smart Link Pass-Through: - (default up) - In this mode, the link state on one connection is directly reflected through the media converter to the other connection. If link is lost on one of the connections, then the other link will be brought down by the media converter.
  • Standard: - In this mode the links on both fiber ports can be brought up and down independently of each other. A loss of link on either link can take place without affecting the other connection

Fiber Fault Alert

  • Enabled - (default up) - If the media converter detects a loss of fiber signal on a fiber receiver, it will immediately disable its fiber transmitter signal. This, in effect, notifies the remote fiber link partner that an error condition exists on the fiber connection. The setting of this switch applies to both fiber ports
  • Disabled: The media converter will not monitor for fiber fault or generate them.

Remote Loopback #1

  • The media converter can perform a loopback on the link #1 fiber interface. Disabled (Default - Up)
  • Enabled - The 1000Base-X receiver is looped to the 1000Base-X transmitter. Link #2's fiber transmitter is taken off the interface

Remote Loopback #2

  • The media converter can perform a loopback on the link #1 fiber interface. Disabled (Default - Up)
  • Enabled - The 1000Base-X receiver is looped to the 1000Base-X transmitter. Link #1's fiber transmitter is taken off the interface.

Fiber Connectors

1000Base-X

Available in SC, ST and LC connector models

Packet Transmission Characteristics

Bit Error Rate (BER)

<10 -12

Environmental Specifications

Operating Temperature

0°C to 50°C (32°F to 122°F)

Storage Temperature

minimum range of -25°C to 70°C (-13°F to 158°F)

Operating Humidity

5% to 90% non-condensing

Storage Humidity

5% to 95% non-condensing

Operating Altitude

Up to 3,048 meters (10,000 feet)

Heat Output (BTU/HR)

8.53

MTBF (Hours)*

  • Without power adaptor: 432,138 Hours
  • With power adaptor: 274,804 Hours

Calculation model based on MIL-HDBK-217-FN2 @ 30°C

Chassis

Metal with an IP20 ingress protection rating

Mounting

Din Rail Kit

Optional

Rack Mount Kit

Optional

Product Weight and Dimensions

Weight

0.3 kg, 0.66 lbs

Dimensions (W x H x D)

120 x 80 x 26 mm, 4.7 x 3.1 x 1.0 inches

Packaging

Shipping Weight

0.55 kg, 1.2 lbs

Shipping Dimensions

170 x 280 x 70 mm, 6.7 x 10.2 x 2.8 inches

Regulatory Approvals

Emissions

  • FCC Part 15 Class A, EN55022 Class A
  • CISPR 22 Class A
  • CISPR 32:2015/EN 55032:2015 (Class A)
  • CISPR 24:2010/EN 55024:2010
  • EN61000-3-2

Immunity

EN55024

Safety

  • UL/EN/IEC 62368-1
  • CAN/CSA C22.2 No. 62368-1
  • UL 60950-1
  • IEC 60950-1(ed 2); am1, am2
  • EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
  • CE

Laser Safety

  • EN 60825-1
  • Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11.

Environmental

Reach, RoHS and WEEE Compliant

Other

  • ECCN: 5A991
  • HTSUS Number: 8517.62.0020
  • Perle Limited Lifetime Warranty

Select a Model to obtain a Part Number - Unmanaged Stand-alone Media Converters - Gigabit Fiber to Fiber

Model
Port
Connector
Type
Transmit
(dBm)
Receive
(dBm)
Power
Budget
(dBm)
Wavelength
(nm)
Fiber
Type
Core
Size
(um)
Modal
Bandwidth
(MHz* Km)
Operating
Distance
Min
Max
Min
Max
S-1000MM-
M2ST05
Port 1
Dual ST
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
Port 2
Dual ST
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
S-1000MM-
M2SC05
Port 1
Dual SC
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
Port 2
Dual SC
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
S-1000MM-
M2LC05
Port 1
Dual LC
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
Port 2
Dual LC
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
S-1000MM-
M2ST2
Port 1
Dual ST
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
Port 2
Dual ST
1000BASE-LX
-6.0
0.0
-0.0
-17.0
6.0
1310
MMF
62.5
160
2 km
(1.2 mi)
50
500
1000 m
(3281 ft)
S-1000MM-
M2SC2
Port 1
Dual SC
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
Port 2
Dual SC
1000BASE-LX
-6.0
0.0
-0.0
-17.0
6.0
1310
MMF
62.5
160
2 km
(1.2 mi)
50
500
1000 m
(3281 ft)
S-1000MM-
M2LC2
Port 1
Dual LC
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
Port 2
Dual LC
1000BASE-LX
-6.0
0.0
-0.0
-17.0
6.0
1310
MMF
62.5
160
2 km
(1.2 mi)
50
500
1000 m
(3281 ft)
S-1000MM-
S2ST10
Port 1
Dual ST
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
Port 2
Dual ST
1000BASE-LX/LH
-9.5
-3.0
-20.0
-3.0
10.5
1310
MMF*
62.5
500
550 m
(1,804 ft)
50
400
550 m
(1,804 ft)
50
500
550 m
(1,804 ft)
SMF**
**
-
10 km
(6.2 mi)
S-1000MM-
S2SC10
Port 1
Dual SC
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
Port 2
Dual SC
1000BASE-LX/LH
-9.5
-3.0
-20.0
-3.0
10.5
1310
MMF*
62.5
500
550 m
(1,804 ft)
50
400
550 m
(1,804 ft)
50
500
550 m
(1,804 ft)
SMF**
**
-
10 km
(6.2 mi)
S-1000MM-
S2LC10
Port 1
Dual LC
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
Port 2
Dual LC
1000BASE-LX/LH
-9.5
-3.0
-20.0
-3.0
10.5
1310
MMF*
62.5
500
550 m
(1,804 ft)
50
400
550 m
(1,804 ft)
50
500
550 m
(1,804 ft)
SMF**
**
-
10 km
(6.2 mi)
S-1000MM-
S2ST40
Port 1
Dual ST
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
Port 2
Dual ST
1000BASE-EX
-2
2.0
-23.0
-3.0
21
1310
SMF**
**
-
40,000 m
(131,234 ft)
S-1000MM-
S2SC40
Port 1
Dual SC
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
Port 2
Dual SC
1000BASE-EX
-2
2.0
-23.0
-3.0
21
1310
SMF**
**
-
40,000 m
(131,234 ft)
S-1000MM-
S2LC40
Port 1
Dual LC
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
Port 2
Dual LC
1000BASE-EX
-3
2.0
-23.0
-3.0
20
1310
SMF**
**
-
40,000 m
(131,234 ft)
S-1000MM-
S2ST70
Port 1
Dual ST
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
Port 2
Dual ST
1000BASE-ZX
-2
5.0
-23.0
-3.0
21
1550
SMF**
**
-
70 km
(43,5 mi)
S-1000MM-
S2SC70
Port 1
Dual SC
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
Port 2
Dual SC
1000BASE-ZX
-2
5.0
-23.0
-3.0
21
1550
SMF**
**
-
70 km
(43,5 mi)
S-1000MM-
S2LC70
Port 1
Dual LC
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
Port 2
Dual LC
1000BASE-ZX
0
5.0
-23.0
-3.0
23
1550
SMF**
**
-
70 km
(43,5 mi)
S-1000MM-
S2ST120
Port 1
Dual ST
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
Port 2
Dual ST
1000BASE-ZX
0
5.0
-32.0
-9.0
32.0
1550
SMF**
**
-
120 km
(75 mi)
S-1000MM-
S2SC120
Port 1
Dual SC
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
Port 2
Dual SC
1000BASE-ZX
0
5.0
-32.0
-9.0
32.0
1550
SMF**
**
-
120 km
(75 mi)
S-1000MM-
S2LC120
Port 1
Dual LC
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
Port 2
Dual LC
1000BASE-ZX
0
5.0
-32.0
-9.0
32.0
1550
SMF**
**
-
120 km
(75 mi)
S-1000MM-
S2SC160
Port 1
Dual SC
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
Port 2
Dual SC
1000BASE-ZX
2
5.0
-32.0
-9.0
34.0
1550
SMF**
**
-
160 km
(100 mi)
S-1000MM-
S2LC160
Port 1
Dual LC
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
Port 2
Dual LC
1000BASE-ZX
2
5.0
-32.0
-9.0
34.0
1550
SMF**
**
-
160 km
(100 mi)
S-1000MM-
S2ST160
Port 1
Dual ST
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
Port 2
Dual ST
1000BASE-ZX
2
5.0
-32.0
-9.0
34.0
1550
SMF**
**
-
160 km
(100 mi)

Single Fiber Models Recommended use in pairs

Model
Port
Connector
Type
Transmit
(dBm)
Receive
(dBm)
Power
Budget
(dBm)
Wavelength
(nm)
Fiber
Type
Core
Size
(um)
Modal
Bandwidth
(MHz* Km)
Operating
Distance
Min
Max
Min
Max
S-1000MM-
S1SC10U
Port 1
Dual SC
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
Port 2
Single SC
1000BASE-BX10-U
-9
-3.0
-20.0
-3.0
11
1310/1490
SMF**
**
-
10 km
(6.2 mi)
S-1000MM-
S1SC10D
Port 1
Dual SC
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
Port 2
Single SC
1000BASE-BX10-D
-9
-3.0
-20.0
-3.0
11
1490/1310
SMF**
**
-
10 km
(6.2 mi)
S-1000MM-
S1SC20U
Port 1
Dual SC
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
Port 2
Single SC
1000BASE-BX-U
-8
-3.0
-22.0
-3.0
14.0
1310/1490
SMF**
**
-
20 km
(12.4 mi)
S-1000MM-
S1SC20D
Port 1
Dual SC
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
Port 2
Single SC
1000BASE-BX-D
-8
-3.0
-22.0
-3.0
14.0
1490/1310
SMF**
**
-
20 km
(12.4 mi)
S-1000MM-
S1SC40U
Port 1
Dual SC
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
Port 2
Single SC
1000BASE-BX-U
-3
2.0
-23.0
-3.0
20.0
1310/1490
SMF**
**
-
40 km
(25 mi)
S-1000MM-
S1SC40D
Port 1
Dual SC
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
Port 2
Dual SC
1000BASE-BX-D
-3
2.0
-23.0
-3.0
20.0
1490/1310
SMF**
**
-
40 km
(25 mi)
S-1000MM-
S1SC80U
Port 1
Dual SC
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
Port 2
Single SC
1000BASE-BX-U
-2
3.0
-26.0
-3.0
24.0
1510/1590
SMF**
**
-
80 km
(50 mi)
S-1000MM-
S1SC80D
Port 1
Dual SC
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
Port 2
Single SC
1000BASE-BX-D
-2
3.0
-26.0
-3.0
24.0
1590/1510
SMF**
**
-
80 km
(50 mi)
S-1000MM-
S1SC120U
Port 1
Dual SC
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
Port 2
Single SC
1000BASE-BX-U
-3.0
2.0
-34.0
-9.0
31.0
1510/1590
SMF**
**
-
120 km
(75 mi)
S-1000MM-
S1SC120D
Port 1
Dual SC
1000BASE-SX
-9.5
-4.0
-17.0
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
Port 2
Single SC
1000BASE-BX-D
-3.0
2.0
-34.0
-9.0
31.0
1590/1510
SMF**
**
-
120 km
(75 mi)

The minimum fiber cable distance for all converters listed is 2 meters.

*A mode-conditioning adapter as specified by the IEEE standard, is required regardless of the span length. Note how the mode conditioning adapter for 62.5-um fibers has a different specification from the mode-conditioning adapter for 50-um fibers.

**ITU-T G.652 SMF as specified by the IEEE 802.3z standard

Media Converter Accessories
4 DIN Rail Mount Bkt DIN Rail Mounting Kit
MCSM Standalone media converter wall mount bracket

Application Diagrams

Relie deux commutateurs Gigabit fibre

Étend la distance du lien réseau entre deux commutateurs fibre Gigabit
Deux convertisseurs de médias Gigabit Multimode vers Monomode permettent d'étendre la distance entre les commutateurs fibre sur un lien fibre jusqu'à 160 km.

extend between two fiber switches diagram

Monomode / Monofibre

Connectez plusieurs ports fibre sur un seul brin de fibre (également appelé « bidirectionnel »)
Si une fibre monobrin est utilisée, deux convertisseurs de médias monofibre sont nécessaires pour assurer la conversion fibre vers fibre. Les convertisseurs de médias Perle monofibre sont également appelés « Up/Down ». Par exemple, le S-1000MM-S1SC20U (« Up ») et le S-1000MM-S1SC20D (« Down »), présentés ci-dessous, vont de paire. Un module « Up » doit être mis en correspondance avec un homologue « Down » pour traiter séparément les fréquences de transmission et de réception.

single mode fiber diagram S-1000MM-S1SC20US-1000MM-S1SC20D


Les majorité des installations des convertisseurs de médias monomodes sont de type « double connecteur » ou « double fibre » où l'une des connexions fibre sert à la transmission et l'autre à la réception. Ces liens sont « croisés » physiquement pour accommoder les liens de transmission/réception.

Cependant, pour réduire les coûts, ou en cas de limites concernant les liens fibre disponibles, il est possible d'appliquer la technologie WDM. WDM emploie des fréquences distinctes de transmission et de réception pour communiquer sur le même brin de fibre optique. Cette technologie exploite les propriétés de transmission simultanée d'ondes lumineuses sur plusieurs longueurs d'ondes simultanément, sans interaction entre ces dernières. Ainsi, un lien fibre peut transmettre plusieurs signaux de longueur d'onde ou canaux en même temps.

Par conséquent, si vous utilisez une fibre monobrin, utilisez un convertisseur de médias « Up » d'un côté et « Down » de l'autre pour la conversion fibre vers fibre.

Perle offre une vaste gamme de convertisseurs de médias monofibre (« Up/Down ») pour connecter des liens 10BaseT, Fast Ethernet et Gigabit à un lien monofibre. Quelle que soit la solution recherchée, gérée ou non gérée, autonome ou sur châssis, sur 20 ou 120 km, Perle dispose d'un modèle adapté à vos besoins de conversion sur réseau en fibre optique.

Link Pass-Through est indispensable pour maintenir une liaison fibre–fibre transparente

Fiber to Ethernet Converters

Note technique Perle Systems: Fonction de vérification continue de deux connexions fibre par les convertisseurs fibre multimode vers monomode de Perle.

Convertisseurs de médias autorisant un débit Gigabit Ethernet sur un segment fibre multimode de 2 km

Fiber to Ethernet Converters

Note technique : Perle propose des Convertisseurs Fibre Gigabit assurant un débit Gigabit sur des segments existants de fibre multimode jusqu' à 2 Km.

Calculating and Understanding Optical Power Budgets

Fiber Media Converter

A Perle Technical Note: Calculating and understanding optical power budgets to determine maximum fiber optic cable distance between media converters.

Ai-je besoin d'un Extenseur Ethernet ou un Convertisseur de Médias?

Where to Start?

Perle présente les différences entre les extenseurs Ethernet et les Convertisseurs de Médias Fibre pour vous aider à choisir la technologie la mieux adaptée à votre environnement.

Filtrez vos options pour trouver le matériel adapté à votre application

Affichage de 186 produits sur 186

Voir Accessoires

Fare cliquez sur le numéro de la partie du produit pour obtenir des informations sur la commande.

Image du produit

La description

Cordon d'alimentation et numéro de produit

S-1000MM-M2SC05 | Gigabit Fiber to Fiber Converter | Perle

S-1000MM-M2SC05 - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter, 1000Base-SX 850nm multimode (SC) [550 m/1804 ft.] to 1000Base-SX 850nm multimode (SC) [550 m/1804 ft.]

S-1000MM-M2LC05 | Gigabit Fiber to Fiber Converter | Perle

S-1000MM-M2LC05 - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter, 1000Base-SX 850nm multimode (LC) [550 m/1804 ft.] to 1000Base-SX 850nm multimode (LC) [550 m/1804 ft.]

S-1000MM-M2ST05 | Gigabit Fiber to Fiber Converter | Perle

S-1000MM-M2ST05 - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter, 1000Base-SX 850nm multimode (ST) [550 m/1804 ft.] to 1000Base-SX 850nm multimode (ST) [550 m/1804 ft.]

S-1000MM-S2SC10 | Gigabit Fiber to Fiber Converter | Perle

S-1000MM-S2SC10 - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter, 1000Base-SX 850nm multimode (SC) [550 m/1804 ft.] to 1000Base-LX/LH 1310 nm single mode (SC) [10 km/6.2 miles]

S-1000MM-S2LC10 | Gigabit Fiber to Fiber Converter | Perle

S-1000MM-S2LC10 - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter, 1000Base-SX 850nm multimode (LC) [550 m/1804 ft.] to 1000Base-LX/LH 1310 nm single mode (LC) [10 km/6.2 miles]

S-1000MM-S2ST10 | Gigabit Fiber to Fiber Converter | Perle

S-1000MM-S2ST10 - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter, 1000Base-SX 850nm multimode (ST) [550 m/1804 ft.] to 1000Base-LX/LH 1310 nm single mode (ST) [10 km/6.2 miles]

S-1000MM-S2SC40 | Gigabit Fiber to Fiber Converter | Perle

S-1000MM-S2SC40 - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter, 1000Base-SX 850nm multimode (SC) [550 m/1804 ft.] to 1000Base-EX 1310 nm single mode (SC) [40 km/24.9 miles]

S-1000MM-S2LC40 | Gigabit Fiber to Fiber Converter | Perle

S-1000MM-S2LC40 - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter, 1000Base-SX 850nm multimode (LC) [550 m/1804 ft.] to 1000Base-EX 1310 nm single mode (LC) [40 km/24.9 miles]

S-1000MM-S2ST40 | Gigabit Fiber to Fiber Converter | Perle

S-1000MM-S2ST40 - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter, 1000Base-SX 850nm multimode (ST) [550 m/1804 ft.] to 1000Base-EX 1310 nm single mode (ST) [40 km/24.9 miles]

S-1000MM-S2SC70 | Gigabit Fiber to Fiber Converter | Perle

S-1000MM-S2SC70 - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter, 1000Base-SX 850nm multimode (SC) [550 m/1804 ft.] to 1000Base-ZX 1550 nm single mode (SC) [70 km/43.5 miles]

S-1000MM-S2LC70 | Gigabit Fiber to Fiber Converter | Perle

S-1000MM-S2LC70 - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter, 1000Base-SX 850nm multimode (LC) [550 m/1804 ft.] to 1000Base-ZX 1550 nm single mode (LC) [70 km/43.5 miles]

S-1000MM-S2ST70 | Gigabit Fiber to Fiber Converter | Perle

S-1000MM-S2ST70 - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter, 1000Base-SX 850nm multimode (ST) [550 m/1804 ft.] to 1000Base-ZX 1550 nm single mode (ST) [70 km/43.5 miles]

S-1000MM-S2SC120 | Gigabit Fiber to Fiber Converter | Perle

S-1000MM-S2SC120 - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter, 1000Base-SX 850nm multimode (SC) [550 m/1804 ft.] to 1000Base-EZX 1550 nm single mode (SC) [120 km/74.6 miles]

S-1000MM-S2LC120 | Gigabit Fiber to Fiber Converter | Perle

S-1000MM-S2LC120 - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter, 1000Base-SX 850nm multimode (LC) [550 m/1804 ft.] to 1000Base-EZX 1550 nm single mode (LC) [120 km/74.6 miles]

S-1000MM-S2ST120 | Gigabit Fiber to Fiber Converter | Perle

S-1000MM-S2ST120 - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter, 1000Base-SX 850nm multimode (ST) [550 m/1804 ft.] to 1000Base-EZX 1550 nm single mode (ST) [120 km/74.6 miles]

S-1000MM-S1SC10U | Gigabit Fiber to Fiber Converter | Perle

S-1000MM-S1SC10U - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter, 1000Base-SX 850nm multimode (SC) [550 m/1804 ft.] to 1000Base-BX 1310nm TX / 1490nm RX single strand fiber, single mode (SC) [10 km/6.2 miles]

S-1000MM-S1SC10D | Gigabit Fiber to Fiber Converter | Perle

S-1000MM-S1SC10D - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter, 1000Base-SX 850nm multimode (SC) [550 m/1804 ft.] to 1000Base-BX 1490nm TX / 1310nm RX single strand fiber, single mode (SC) [10 km/6.2 miles]

S-1000MM-S2ST160 | Gigabit Fiber to Fiber Converter | Perle

S-1000MM-S2ST160 - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter. 1000Base-SX 850nm multimode (ST) [550 m/1804 ft.] to 1000Base-EZX 1550 nm single mode (ST) [160 km/100 miles]

S-1000MM-S2SC160 | Gigabit Fiber to Fiber Converter | Perle

S-1000MM-S2SC160 - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter. 1000Base-SX 850nm multimode (SC) [550 m/1804 ft.] to 1000Base-EZX 1550 nm single mode (SC) [160 km/100 miles]

S-1000MM-S2LC160 | Gigabit Fiber to Fiber Converter | Perle

S-1000MM-S2LC160 - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter. 1000Base-SX 850nm multimode (LC) [550 m/1804 ft.] to 1000Base-EZX 1550 nm single mode (LC) [160 km/100 miles]

S-1000MM-S1SC80U | Gigabit Fiber to Fiber Converter | Perle

S-1000MM-S1SC80U - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter. 1000Base-SX 850nm multimode (SC) [550 m/1804 ft.] to 1000Base-BX 1510nm TX / 1590nm RX single strand fiber, single mode (SC) [80 km/50 miles]

S-1000MM-S1SC80D | Gigabit Fiber to Fiber Converter | Perle

S-1000MM-S1SC80D - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter. 1000Base-SX 850nm multimode (SC) [550 m/1804 ft.] to 1000Base-BX 1590nm TX / 1510nm RX single strand fiber, single mode (SC) [80 km/50 miles]

S-1000MM-S1SC40U | Gigabit Fiber to Fiber Converter | Perle

S-1000MM-S1SC40U - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter. 1000Base-SX 850nm multimode (SC) [550 m/1804 ft.] to 1000Base-BX 1310nm TX / 1490nm RX single strand fiber, single mode (SC) [40 km/25 miles]

S-1000MM-S1SC40D | Gigabit Fiber to Fiber Converter | Perle

S-1000MM-S1SC40D - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter. 1000Base-SX 850nm multimode (SC) [550 m/1804 ft.] to 1000Base-BX 1490nm TX / 1310nm RX single strand fiber, single mode (SC) [40 km/25 miles]

S-1000MM-S1SC20U | Gigabit Fiber to Fiber Converter | Perle

S-1000MM-S1SC20U - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter. 1000Base-SX 850nm multimode (SC) [550 m/1804 ft.] to 1000Base-BX 1310nm TX / 1490nm RX single strand fiber, single mode (SC) [20 km/12.4 miles]

S-1000MM-S1SC20D | Gigabit Fiber to Fiber Converter | Perle

S-1000MM-S1SC20D - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter. 1000Base-SX 850nm multimode (SC) [550 m/1804 ft.] to 1000Base-BX 1490nm TX / 1310nm RX single strand fiber, single mode (SC) [20 km/12.4 miles]

S-1000MM-S1SC120U | Gigabit Fiber to Fiber Converter | Perle

S-1000MM-S1SC120U - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter. 1000Base-SX 850nm multimode (SC) [550 m/1804 ft.] to 1000Base-BX 1510nm TX / 1590nm RX single strand fiber, single mode (SC) [120 km/75 miles]

S-1000MM-S1SC120D | Gigabit Fiber to Fiber Converter | Perle

S-1000MM-S1SC120D - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter. 1000Base-SX 850nm multimode (SC) [550 m/1804 ft.] to 1000Base-BX 1590nm TX / 1510nm RX single strand fiber, single mode (SC) [120 km/75 miles]

S-1000MM-M2SC2 | Gigabit Fiber to Fiber Converter | Perle

S-1000MM-M2SC2 - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter. 1000Base-SX 850nm multimode (SC) [550 m/1804 ft.] to 1000Base-LX 1310nm Extended multimode (SC) [2km /6562 ft.]

S-1000MM-M2LC2 | Gigabit Fiber to Fiber Converter | Perle

S-1000MM-M2LC2 - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter. 1000Base-SX 850nm multimode (LC) [550 m/1804 ft.] to 1000Base-LX 1310nm Extended multimode (LC) [2km /6562 ft.]

S-1000MM-M2ST2 | Gigabit Fiber to Fiber Converter | Perle

S-1000MM-M2ST2 - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter. 1000Base-SX 850nm multimode (ST) [550 m/1804 ft.] to 1000Base-LX 1310nm Extended multimode (ST) [2km /6562 ft.]

Related Accessories

Accessory Image

Accessory Description

Part No.

4 DIN Rail Mount Bkt | Perle

DIN Rail Mounting Kit for 4 & 8 port IOLAN desktop models, all Stand-Alone Media Converters and all Stand-alone Ethernet Extenders. Two of these brackets are required for the 8 port STS8-D model.

MCSM Standalone media converter wall / rack mount bracket | Perle

Standalone media converter wall / rack mount bracket

Hi!

Avez-vous une question? Discutez en direct avec un spécialiste produit !

Questions sur le produit

Nous pouvons vous offrir plus d’informations sur nos produits ou vous préparer un devis


email-icon Envoyer un Email
contactus-icon Envoyer un Email callus-icon Nous Appeler
×

Envoyer un Email
