Alimentation industrielle
Alimentation industrielle Compacte sur Rail DIN
- Conformes à de nombreuses normes reconnues dans l'industrie pour assurer le plus haut niveau de durabilité et d'adaptabilité dans les conditions environnementales difficiles
- Compactes avec fixation rail DIN standard
- Gamme d'entrées universelles
- Protection contre les court-circuits, les surcharges et les surtensions
- Voyant LED indiquant le fonctionnement
Les alimentations industrielles Perle sont conçues pour résister aux températures extrêmes, pics, vibrations, et chocs présents dans les applications industrielles d'automatisation, gouvernementales, militaires, pétrolières et du gaz, minières et à l'extérieur.
Les alimentations UNO 24v et TRIO 48vDC sont de qualité industrielle pour offrir une fiabilité supérieure à des températures de fonctionnement allant de 25 à 70 °C.
Pourquoi les alimentations UNO et TRIO constituent le choix privilégié:
- Efficacité énergétique maximale, grâce à un rendement supérieur à 90 % et des pertes extrêmement faibles lors des périodes d'inactivité
- Fiabilité opérationnelle maximale grâce à un MTBF (temps moyen entre pannes) élevé et une haute résistance diélectrique
- Plus d'espace dans l'armoire de commande avec 20 % en plus de densité de puissance
- Montage flexible avec fixation simple sur le rail DIN
- Conception robuste avec boîtier métallique
Ces alimentations sont idéales pour fournir une puissance fiable aux :
Output
Nominal DC Voltage
MINI-SYS- PS-100- 240AC / 24D C / 1.5
24 V
UNO-PS/1AC/ 24DC/60W
24 V
UNO-PS/1AC/ 24DC/150W
24 V
TRIO-PS/1AC/ 48DC/5
48 V
TRIO-PS/1AC/ 48DC/10
48 V
Max Current
MINI-SYS- PS-100- 240AC / 24D C / 1.5
1.5 A
UNO-PS/1AC/ 24DC/60W
2.5 A
UNO-PS/1AC/ 24DC/150W
6.25 A
TRIO-PS/1AC/ 48DC/5
5 A
TRIO-PS/1AC/ 48DC/10
10 A
Rated Power
MINI-SYS- PS-100- 240AC / 24D C / 1.5
36 watts
UNO-PS/1AC/ 24DC/60W
60 watts
UNO-PS/1AC/ 24DC/150W
150 watts
TRIO-PS/1AC/ 48DC/5
240 watts
TRIO-PS/1AC/ 48DC/10
480 watts
Ripple and Noise
MINI-SYS- PS-100- 240AC / 24D C / 1.5
<40 mVpp
UNO-PS/1AC/ 24DC/60W
< 30 mVpp
UNO-PS/1AC/ 24DC/150W
< 40 mVpp
TRIO-PS/1AC/ 48DC/5
< 50 mVpp
TRIO-PS/1AC/ 48DC/10
< 50 mVpp
Load De-rating
MINI-SYS- PS-100- 240AC / 24D C / 1.5
60°C to 70°C (140 to 158°F) (2.5%/K)
UNO-PS/1AC/ 24DC/60W
55°C to 70°C (131 to 158°F) (2.5%/K)
UNO-PS/1AC/ 24DC/150W
55°C to 70°C (131 to 158°F) (2.5%/K)
TRIO-PS/1AC/ 48DC/5
54°C to 70°C (129 to 158°F) (2.5%/K)
TRIO-PS/1AC/ 48DC/10
55°C to 70°C (131 to 158°F) (2.5%/K)
Output Connectors
MINI-SYS- PS-100- 240AC / 24D C / 1.5
6 Pluggable screw connection (2 x V+ / V- and 2 controls)
UNO-PS/1AC/ 24DC/60W
4-pin terminal block ( V+,V-,V+,V- )
UNO-PS/1AC/ 24DC/150W
4-pin terminal block ( V+,V-,V+,V- )
TRIO-PS/1AC/ 48DC/5
4-pin terminal block ( V+,V-,V+,V- )
TRIO-PS/1AC/ 48DC/10
4-pin terminal block ( V+,V-,V+,V- )
Input
Input Voltage Range
85 V AC ... 264 V AC
Frequency Range
MINI-SYS- PS-100- 240AC / 24D C / 1.5
45 Hz ... 65 H
UNO-PS/1AC/ 24DC/60W
45 Hz ... 65 H
UNO-PS/1AC/ 24DC/150W
45 Hz ... 65 H
TRIO-PS/1AC/ 48DC/5
46 – 65Hz
TRIO-PS/1AC/ 48DC/10
47 Hz - 65 Hz
Efficiency (Typical)
MINI-SYS- PS-100- 240AC / 24D C / 1.5
>84%
UNO-PS/1AC/ 24DC/60W
>90%
UNO-PS/1AC/ 24DC/150W
>94%
TRIO-PS/1AC/ 48DC/5
>89%
TRIO-PS/1AC/ 48DC/10
>91%
AC Current (Typical)
MINI-SYS- PS-100- 240AC / 24D C / 1.5
0.75A/120v AC
0.45A/240v AC
UNO-PS/1AC/ 24DC/60W
1 A/120v AC
0.6 A/230v AC
UNO-PS/1AC/ 24DC/150W
1.4 A/120v AC
0.8 A/230 vA
TRIO-PS/1AC/ 48DC/5
2.5 A/120v AC
1.3 A/231v AC
TRIO-PS/1AC/ 48DC/10
4.6 A/120v AC
2.4 A/230v AC
Inrush Current (Typical)
MINI-SYS- PS-100- 240AC / 24D C / 1.5
<15A
UNO-PS/1AC/ 24DC/60W
<30A (typical)
UNO-PS/1AC/ 24DC/150W
<50A (typical)
TRIO-PS/1AC/ 48DC/5
<15A
TRIO-PS/1AC/ 48DC/10
<15A
Input Connectors
MINI-SYS- PS-100- 240AC / 24D C / 1.5
3 Pluggable screw connection
UNO-PS/1AC/ 24DC/60W
2-pin terminal block
UNO-PS/1AC/ 24DC/150W
2-pin terminal block
TRIO-PS/1AC/ 48DC/5
3-pin terminal block
TRIO-PS/1AC/ 48DC/10
3-pin terminal block
Protection
Over Voltage
MINI-SYS- PS-100- 240AC / 24D C / 1.5
UNO-PS/1AC/ 24DC/60W
-
UNO-PS/1AC/ 24DC/150W
-
TRIO-PS/1AC/ 48DC/5
limited to approx. 60 V DC
TRIO-PS/1AC/ 48DC/10
limited to approx. 60 V DC
Environmental Specifications
Operating Temperature Ranges
-25°C to 70°C (-13 to 158°F)
Storage Temperature Range
-40°C to 85°C (-40 to 185°F)
Operating Humidity Range
MINI-SYS- PS-100- 240AC / 24D C / 1.5
≤ 95 % (at 25 °C, non-condensing)
UNO-PS/1AC/ 24DC/60W
≤ 95 % (at 25 °C, non-condensing)
UNO-PS/1AC/ 24DC/150W
≤ 95 % (at 25 °C, non-condensing)
TRIO-PS/1AC/ 48DC/5
94 % (at 25 °C, non-condensing)
TRIO-PS/1AC/ 48DC/10
95 % (at 25 °C, non-condensing)
Din Rail Mountable
Mounts to standard 35 mm DIN rail in accordance with DIN EN 60175
T-BUS Connector
MINI-SYS- PS-100- 240AC / 24D C / 1.5
Yes
UNO-PS/1AC/ 24DC/60W
No
UNO-PS/1AC/ 24DC/150W
No
TRIO-PS/1AC/ 48DC/5
No
TRIO-PS/1AC/ 48DC/10
No
MTBF
MINI-SYS- PS-100- 240AC / 24D C / 1.5
> 2789000 Hours (40°C)
(IEC 61709, SN 29500)
UNO-PS/1AC/ 24DC/60W
> 785000 Hours (40°C)
(IEC 61709, SN 29500)
UNO-PS/1AC/ 24DC/150W
> 868000 Hours (40°C)
(IEC 61709, SN 29500)
TRIO-PS/1AC/ 48DC/5
> 500000 Hours (40°C)
(IEC 61709, SN 29500)
TRIO-PS/1AC/ 48DC/10
> 500000 Hours (40°C)
(IEC 61709, SN 29500)
Product Weight and Dimensions
Weight
MINI-SYS- PS-100- 240AC / 24D C / 1.5
0.25 kg
0.55 lbs
UNO-PS/1AC/ 24DC/60W
0.24 kg
0.53 lbs
UNO-PS/1AC/ 24DC/150W
0.5 kg
1.1 lbs
TRIO-PS/1AC/ 48DC/5
1.4 kg
3.1 lbs
TRIO-PS/1AC/ 48DC/10
1.9 kg
4.2 lbs
Dimensions
MINI-SYS- PS-100- 240AC / 24D C / 1.5
35 x 99 x 95 mm,
1.38 x 3.9 x 3.74 inches
UNO-PS/1AC/ 24DC/60W
35 x 90 x 84mm,
1.38 x 3.54 x 3.3 inches
UNO-PS/1AC/ 24DC/150W
37 x 130 x 125mm
TRIO-PS/1AC/ 48DC/5
60 x 130 x 152.5mm,
2.4 x 5.1 x 6 inches
TRIO-PS/1AC/ 48DC/10
115 x 130 x 152.5mm
Packaging
Shipping Weight
MINI-SYS- PS-100- 240AC / 24D C / 1.5
0.35 kg
0.77 lbs
UNO-PS/1AC/ 24DC/60W
0.34 kg
0.75 lbs
UNO-PS/1AC/ 24DC/150W
0.6 kg
1.3 lbs
TRIO-PS/1AC/ 48DC/5
1.71 kg
3.77 lbs
TRIO-PS/1AC/ 48DC/10
2.09 kg
4.6 lbs
Shipping Dimensions
MINI-SYS- PS-100- 240AC / 24D C / 1.5
260 x 170 x 70 mm
10.2 x 6.7 x 2.7 inches
UNO-PS/1AC/ 24DC/60W
260 x 170 x 70 mm
10.2 x 6.7 x 2.7 inches
UNO-PS/1AC/ 24DC/150W
200 x 300 x 70 mm
7.9 x 11.8 x 2.8 inches
TRIO-PS/1AC/ 48DC/5
230 x 200 x 100 mm
9 x 7.9 x 3.9 inches
TRIO-PS/1AC/ 48DC/10
200 x 230 x 150 mm
7.9 x 9.0 x 5.9 inches
Standards and Certifications
Safety
MINI-SYS- PS-100- 240AC / 24D C / 1.5
EN 60950-1/VDE 0805 (SELV)
UNO-PS/1AC/ 24DC/60W
IEC 60950-1/VDE 0805 (SELV)
UNO-PS/1AC/ 24DC/150W
IEC 60950-1/VDE 0805 (SELV)
TRIO-PS/1AC/ 48DC/5
IEC 60950-1/VDE 0805 (SELV)
TRIO-PS/1AC/ 48DC/10
IEC 60950-1/VDE 0805 (SELV)
Emissions
MINI-SYS- PS-100- 240AC / 24D C / 1.5
EN55011, EN55022 (CISPR22)
Class B EN61000-3-2
UNO-PS/1AC/ 24DC/60W
EN55011, EN55022 (CISPR22)
EN61204-3, Class B EN61000-3-2,-3
UNO-PS/1AC/ 24DC/150W
EN55011, EN55022 (CISPR22)
EN61204-3, Class B EN61000-3-2,-3
TRIO-PS/1AC/ 48DC/5
EN55011, EN55022 (CISPR22)
EN61204-3, Class B EN61000-3-2,-3
TRIO-PS/1AC/ 48DC/10
EN55011, EN55022 (CISPR22)
EN61204-3, Class B EN61000-3-2,-3
Mechanical Stability
Vibration: IEC 60068-2-6
EMC and Immunity
MINI-SYS- PS-100- 240AC / 24D C / 1.5
Conformance with EMC Directive 2014/30/EU EN 61000-6-2:2005 EN61000-4-2, 3, 4, 5, 6, 11
UNO-PS/1AC/ 24DC/60W
Conformance with EMC Directive 2014/30/EU EN 61000-6-2:2005
UNO-PS/1AC/ 24DC/150W
Conformance with EMC Directive 2014/30/EU EN 61000-6-2:2005
TRIO-PS/1AC/ 48DC/5
Conformance with EMC Directive 2014/30/EU EN 61000-6-2:2005
TRIO-PS/1AC/ 48DC/10
Conformance with EMC Directive 2014/30/EU EN 61000-6-2:2005
Industrial Safety
MINI-SYS- PS-100- 240AC / 24D C / 1.5
UL508 (Safety standard for Industrial Control Equipment)
UNO-PS/1AC/ 24DC/60W
UL508 (Safety standard for Industrial Control Equipment)
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D T4A (Hazardous Location)
UNO-PS/1AC/ 24DC/150W
UL508 (Safety standard for Industrial Control Equipment)
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D T4A (Hazardous Location)
TRIO-PS/1AC/ 48DC/5
UL508 (Safety standard for Industrial Control Equipment)
-
TRIO-PS/1AC/ 48DC/10
UL508 (Safety standard for Industrial Control Equipment)
-
Rail applications
MINI-SYS- PS-100- 240AC / 24D C / 1.5
EN 50121-4
UNO-PS/1AC/ 24DC/60W
-
UNO-PS/1AC/ 24DC/150W
-
TRIO-PS/1AC/ 48DC/5
EN 50121-4
TRIO-PS/1AC/ 48DC/10
EN 50121-4
Environmental
Other
- ECCN: EAR99
- HSTUS Number: 8504.40.30
- 1 year warranty
Application Diagrams

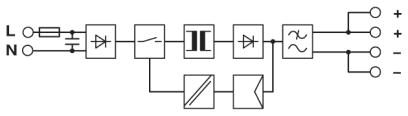

UNO-PS/1AC/24DC/60W Power Supply Block Diagram

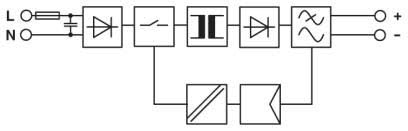

UNO-PS/1AC/24DC/150W Power Supply Block Diagram

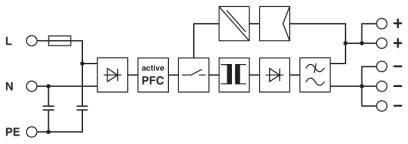

TRIO-PS/1AC/48DC Power Supply Block Diagram

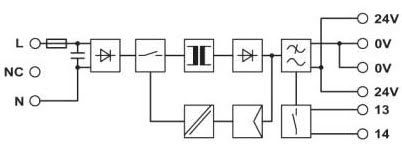

MINI-SYS-PS-100-240AC/24DC/1.5 Power Supply Block Diagram
Fare cliquez sur le numéro de la partie du produit pour obtenir des informations sur la commande.
Image du produit
La description
Cordon d'alimentation et numéro de produit
UNO-PS/1AC/24DC/60W Power Supply - UNO power supply for DIN rail mounting, input: 1-phase, output: 24 V DC/60 W
UNO-PS/1AC/24DC/150W Power Supply - UNO supply for DIN rail mounting, input: 1-phase, output: 24 V DC/150 W
TRIO-PS/1AC/48DC/5 DIN-Rail Power Supply: 48 VDC, 240 Watt with universal 85 to 264 VAC, 30 to 56V DC output range adjustable, -25 to 70°C extended operating temperature.
TRIO-PS/1AC/48DC/10 Power Supply - DIN-Rail 48 VDC , 480 Watt power supply with universal 85 to 264 VAC, 30 to 56V DC output range adjustable, -25 to 70°C extended operating temperature
